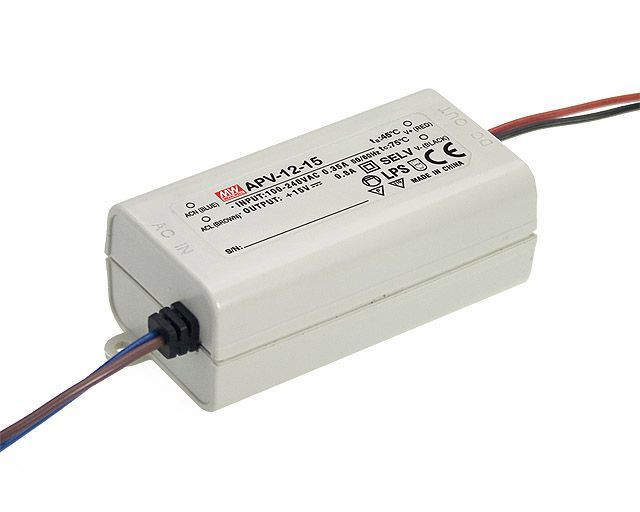

APV-12-S – Mean Well APV-12 Series LED Driver 12W 5V – 24V Fashion

Constant Voltage
Fully isolated plastic case
Protections: Short circuit Overload Over voltage
Other features:

Universal AC input Full Range
Small and compact size
Isolation class II, no FG
Cooling by free air convection
Pass LPS
100% full load burn-in test
Low cost, High reliability
2 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

12

Dimmable (Type)

No

Dimensions

77 x 40 x 29 (LxWxH) mm

EMC Standards

EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547

Input Voltage

90~264VAC; 127~370VDC

Safety Standards

Design refer to TUV EN60950-1, EN61347-2-13, UL8750

Output Voltage Options

Single

Working Temperature

-30~+70°C

PDF Datasheet

APV-12-spec.pdf
