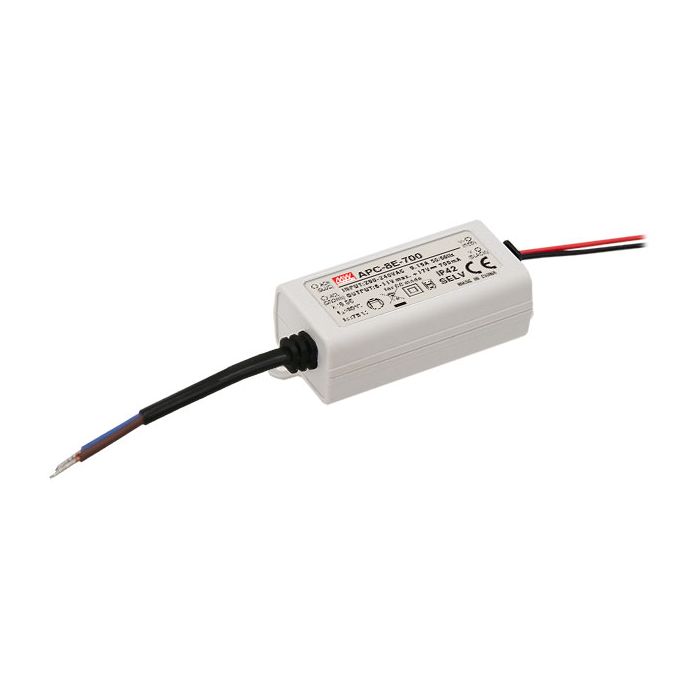

APC-8E-700 – Mean Well LED Driver APC-8E-700 7.7W 700mA For Cheap

Constant CurrentFully isolated plastic caseProtections: Short circuitOther features:Small and compact sizeNo load power consumption <0.5WIP42 designClass II power unit, no FGCooling by free air convectionPF>0.5100% full load burn-in testLow cost, High reliability2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
8

Output Current
700mA

Dimmable (Type)
No

Output Voltage Range (V)
5~11

Dimensions
60 x 30 x 23.5

EMC Standards
EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A

Input Voltage
180~264VAC; 254~370VDC

Safety Standards
Design refer to UL8750, CSA C22.2 No.250.0-08;EN60950-1, EN61347-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+80?C

PDF Datasheet
APC-8E-spec.pdf
