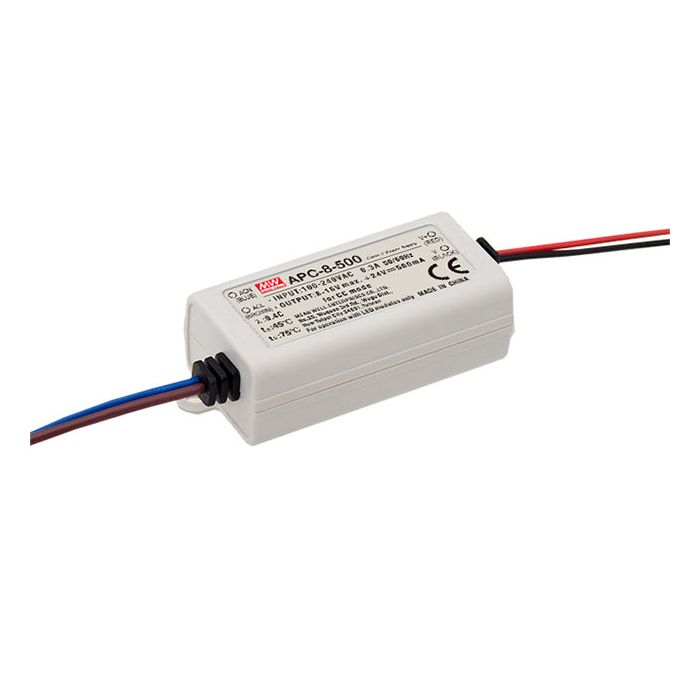

APC-8-S – Mean Well APC-8 Series LED Driver 8W 250mA – 700mA For Cheap
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant CurrentFully isolated plastic caseProtections: Short circuitOther features:Universal AC input Full RangeSmall and compact sizeNo load power consumption <0.5WIP30 designClass II power unit, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
8
Output Current
Choose Option
Dimmable (Type)
No
Output Voltage Range (V)
5~11
Dimensions
60 x 30 x 22
EMC Standards
EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A
Input Voltage
90~264VAC; 127~370VDC
Safety Standards
Design refer to UL8750, CSA C22.2 No.250.0-08; ENEC EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C
PDF Datasheet
APC-8-spec.pdf
