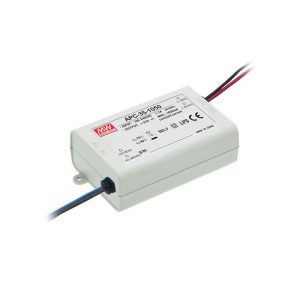

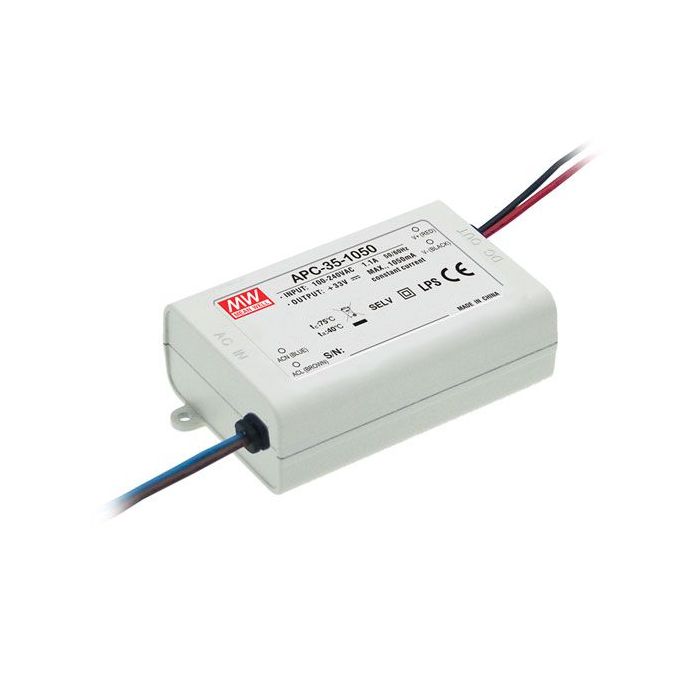

APC-35-S – Mean Well APC-35 Series LED Driver 35W 350mA – 1050mA For Sale

Constant CurrentFully isolated plastic caseProtections: Short circuit Overload Over voltageOther features: Universal AC input Full RangeSmall and compact sizeWithstand 300VAC surge input for 5 secondsIsolation class II, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

35

Output Current

Choose Option

Dimmable (Type)

No

Dimensions

84x 57x 29.5 (LxWxH) mm

EMC Standards

EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A

Input Voltage

90~264VAC, 127VDC~370VDC

Safety Standards

Design refer to EN60950-1, UL8750

Output Voltage Options

Single

Working Temperature

-30~+70°C

PDF Datasheet

APC-35-spec_3.pdf
