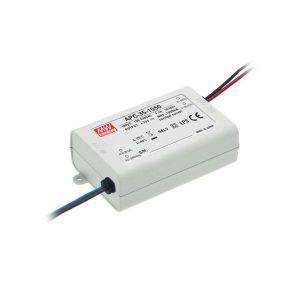

APC-35-500 – Mean Well LED Driver APC-35-500 35W 500mA For Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant CurrentFully isolated plastic caseProtections: Short circuit Overload Over voltageOther features: Universal AC input Full RangeSmall and compact sizeWithstand 300VAC surge input for 5 secondsIsolation class II, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
35
Output Current
500mA
Dimmable (Type)
No
Output Voltage Range (V)
25~70
Dimensions
84x 57x 29.5
EMC Standards
EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A
Input Voltage
90~264VAC, 127VDC~370VDC
Safety Standards
Design refer to EN60950-1, UL8750
Output Voltage Options
Single
Working Temperature
-30~+70°C
PDF Datasheet
APC-35-spec_2.pdf
