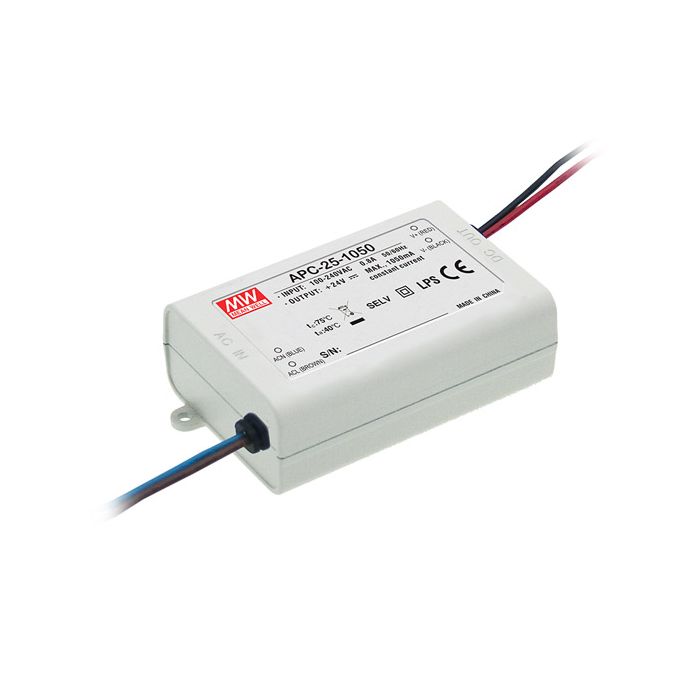

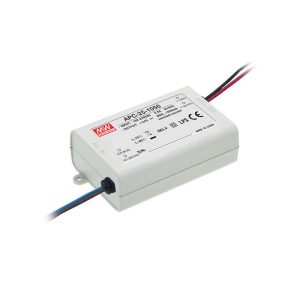

APC-25-700 – Mean Well LED Driver APC-25-700 25W 700mA For Cheap

Constant CurrentFully isolated plastic caseProtections: Short circuit Overload Over voltageOther features: Universal AC input Full RangeSmall and compact sizeWithstand 300VAC surge input for 5 secondsIsolation class II, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
25

Output Current
700mA

Dimmable (Type)
No

Output Voltage Range (V)
11~36

Dimensions
84x 57x 29.5

EMC Standards
EN55022, EN61000-3-2 Class A, EN610003-3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; light industry level (surge 2KV), criteria A

Input Voltage
90~264VAC, 127VDC~370VDC

Safety Standards
Design refer to EN60950-1, UL8750

Output Voltage Options
Single

Working Temperature
-30°C~+70°C (Refer to Derating Curve )

PDF Datasheet
APC-25-spec_2.pdf
