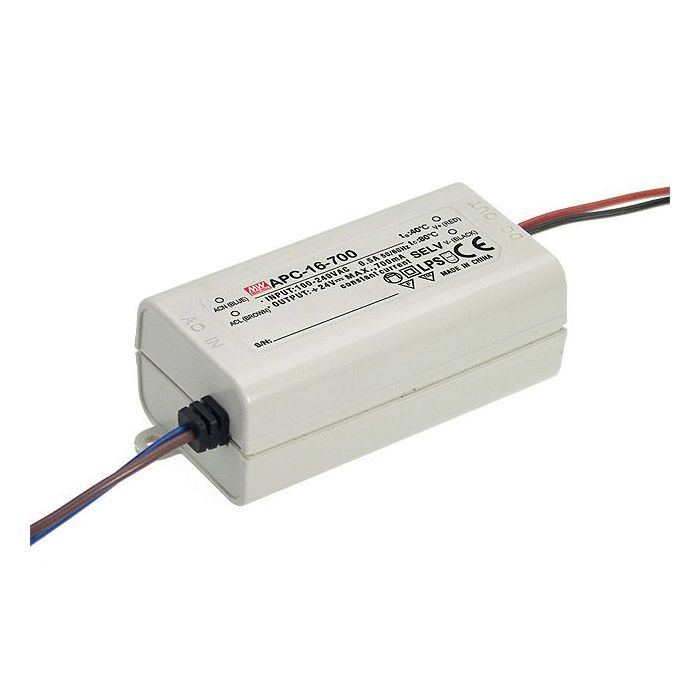

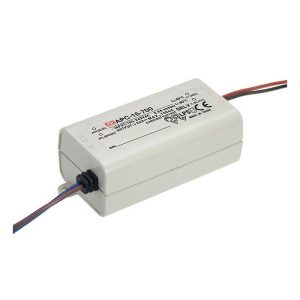

APC-16-S – Mean Well APC-16 Series LED Driver 16W 350mA – 700mA Hot on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant CurrentFully isolated plastic caseProtections: Short circuit Over voltageOther features: Universal AC input Full RangeSmall and compact sizeIsolation class II, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
16
Output Current
Choose Option
Dimmable (Type)
No
Dimensions
77 x 40 x 29 (LxWxH) mm
EMC Standards
EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Input Voltage
90~264VAC; 127~370VDC
Safety Standards
Design refer to TUV EN60950-1, EN61347-2-13, UL8750
Output Voltage Options
Single
Working Temperature
-30°C~+70°C
PDF Datasheet
APC-16-spec_1.pdf
| Current | 350ma, 700ma |
|---|
