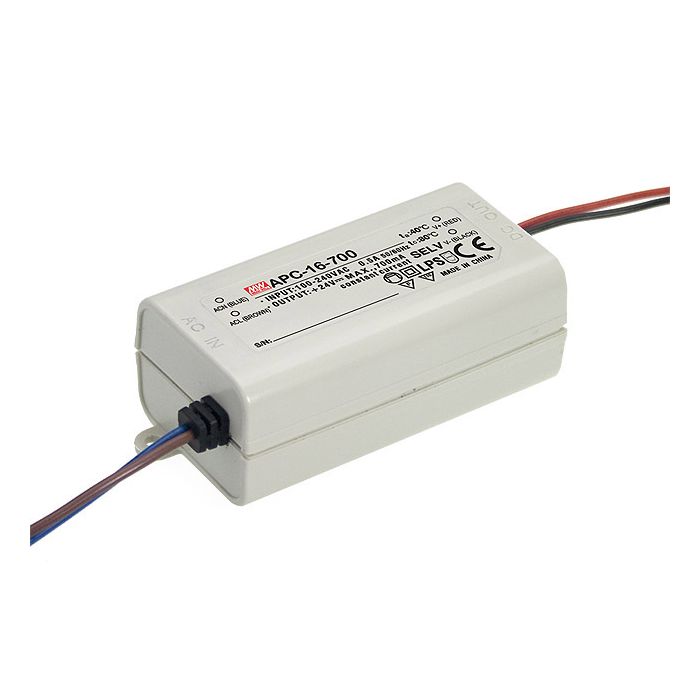

APC-16-700 – Mean Well LED Driver APC-16-700 16W 700mA For Sale

Constant CurrentFully isolated plastic caseProtections: Short circuit Over voltageOther features: Universal AC input Full RangeSmall and compact sizeIsolation class II, no FGCooling by free air convectionPass LPS100% full load burn-in testLow cost, High reliability2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
16

Output Current
700mA

Dimmable (Type)
No

Output Voltage Range (V)
9~24

Dimensions
77 x 40 x 29

EMC Standards
EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547

Input Voltage
90~264VAC; 127~370VDC

Safety Standards
Design refer to TUV EN60950-1, EN61347-2-13, UL8750

Output Voltage Options
Single

Working Temperature
-30°C~+70°C (Refer to Derating Curve )

PDF Datasheet
APC-16-spec_1.pdf
