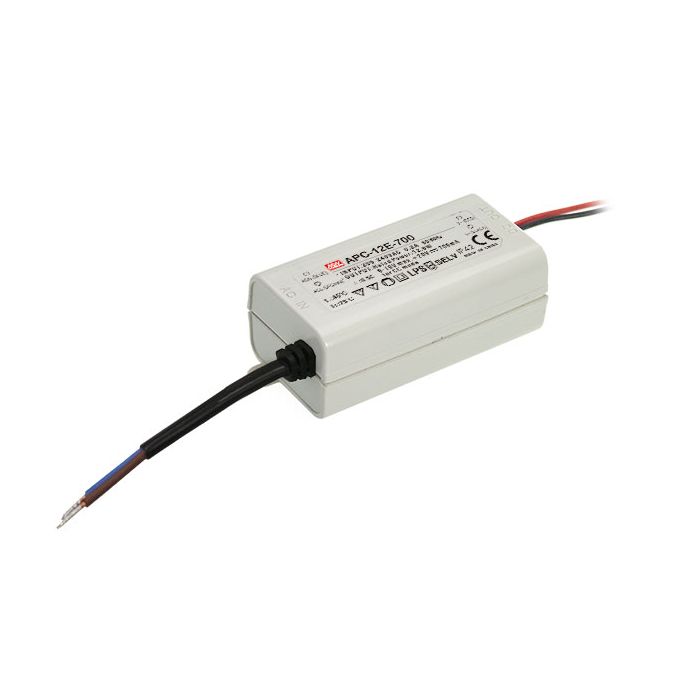

APC-12E-S – Mean Well APC-12E Series LED Driver 12.6W 350-700mA Hot on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Constant CurrentFully isolated plastic caseProtections: Short circuit Over VoltageOther features:Small and compact sizeNo load power consumption <0.5WIP42 designClass II power unit, no FGCooling by free air convectionPass LPSSuitable for LED lighting and moving sign applications100% full load burn-in testLow cost, High reliability2 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
12
Output Current
Choose Option
Dimmable (Type)
No
Dimensions
77 x 40 x 29
EMC Standards
EN55015, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 ; light industry level (surge 2KV), Criteria A
Input Voltage
180~264VAC; 254~370VDC
Safety Standards
IP42 approved; design refer to EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C
PDF Datasheet
APC-12E-spec.pdf
