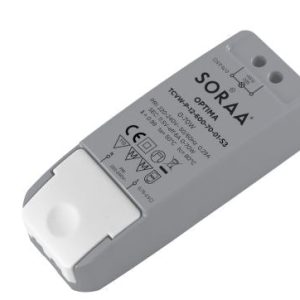

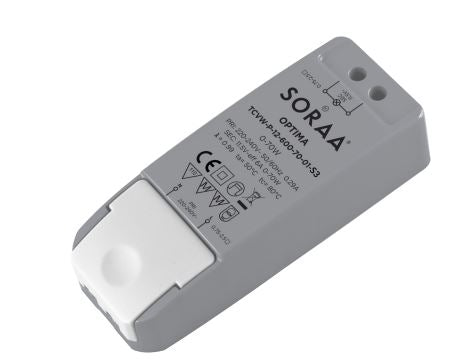

Soraa Transfromer 12v 70w Leading Trailing 240v

TCVW-P-12-600-70-01-S3

The Soraa Optima Series electronic transformer is ideal for 12V LED or halogen lamps. It s highly efficient, works with leading edge or trailing edge dimmers, is easy to install, and features open circuit, short circuit, overload, and over temperature protections and a 30,000 hour lifetime.

Construction
Thermally stable shatter proof PC plastic casing.
Primary Terminal 2-pole, Screw 5.2mm
Secondary Terminal 2-pole, Screw 3.2mm

Compliance
Safety EN 61347-2-1
RFI EN 55015
Harmonics EN61000-3-2
Immunity EN 61547

Electrical: Input
Rated Input Voltage 220-240VAC
Input Current (Full Load) 0.29A
Input Frequency 50 60Hz
Max Input Power 71W
Power Factor ≥ 0.99
THD (Full Load) ≤ 10%
Efficiency (Full Load) ≥ 93%
Input Capacitance 100nF

Electrical: Output
Output Voltage 11.2V ±5%
Output Current 6.0A
Output Power (Full Load) 67.2W
Operating Frequency 32-38KHz

Ambient
Storage Temperature- ts -20 to +70°C
Operating Temperature- ta -20 to +50°C
Case Temperature @ tc +80°C

Protection
No Load, Overload, Auto-Recovery if Short Circuit, Fault is Removed

Over temperature
Withstand Voltage 3.75KVAC, leakage < 5.0mA, 60S

Lifetime & Warranty
Average service life: 30,000 hours.
Three year warranty.
