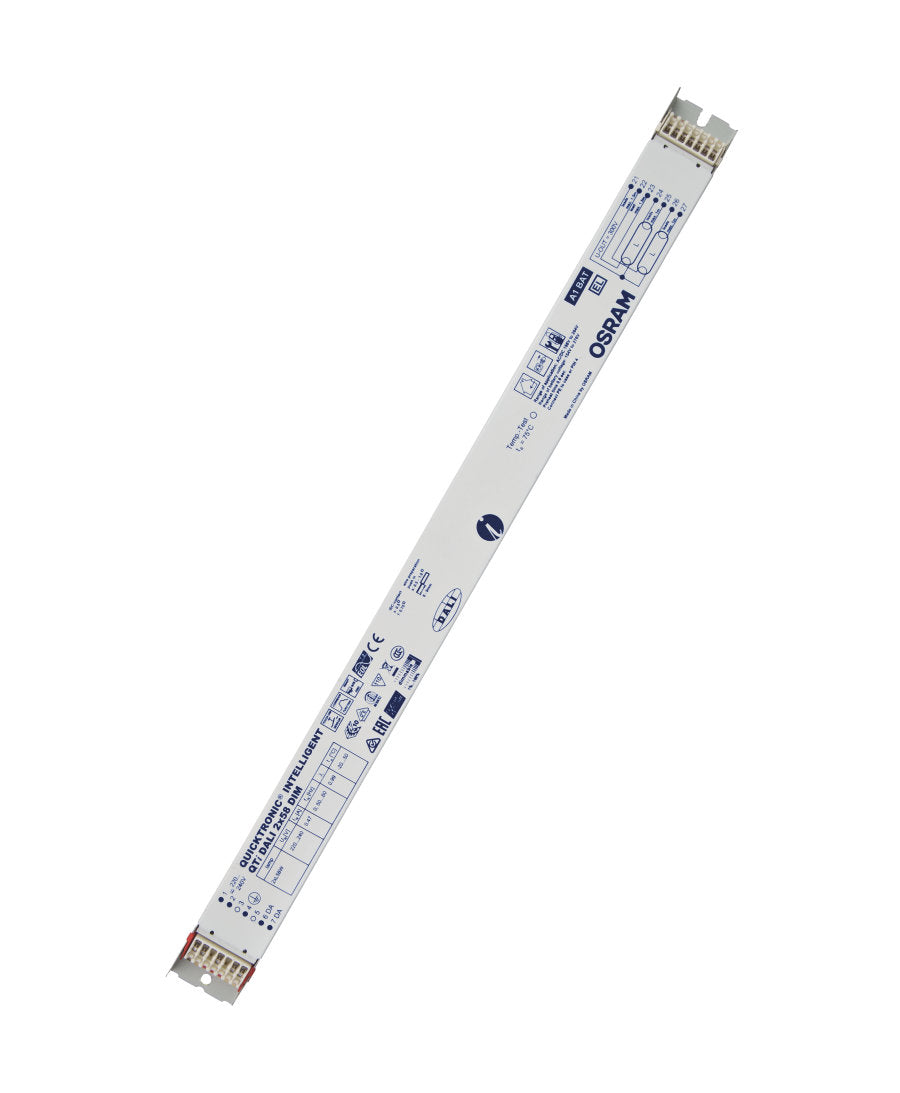

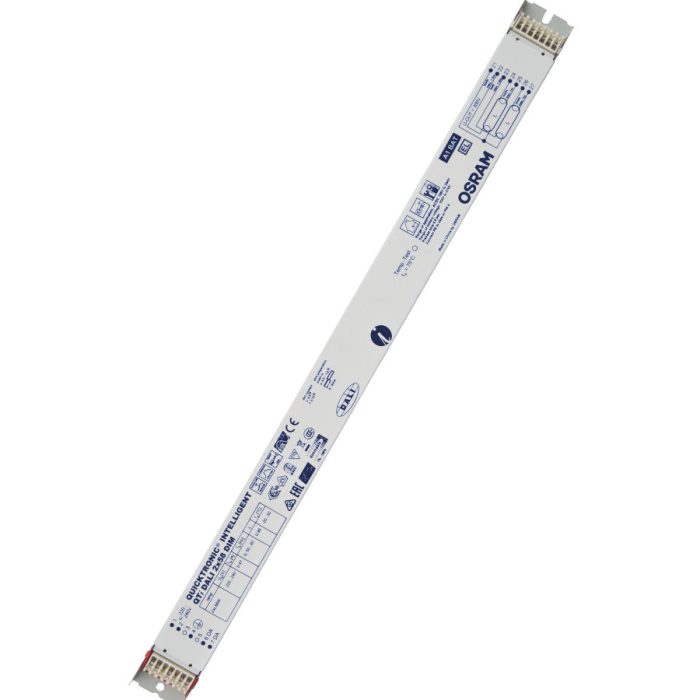

QTi DALI 2X58 DIM 4050300870847 For Discount

$37.33

25 people are viewing this right now
17 products sold in last 5 hours
Selling fast! Over 2 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Technical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Efficiency in full-load

93 %


Networked standby power

<0.25 W


Maximum output power

2 x 58 W

Operating frequency

46…120 kHz

Max. ECG no. on circuit breaker 10 A (B)

8


Max. ECG no. on circuit breaker 16 A (B)

13


Inrush current

45 A

Light technical data

Starting time

0.6 s


Dimensions & weight

Length

423.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

415.0 mm

Product weight

370.00 g

Cable cross-section, input side

0.5…1.5 0.5…1.0 mm²


Cable cross-section, output side

0.5…1.5 0.5…1.0 mm²


Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Permitted rel. humidity during operation

5…85 %


Lifespan

ECG lifetime

100000 h


Additional product data

Suitable for lamp power (2 lamps)

58 W

Capabilities

Dimming interface

DALI Touch DIM Touch DIM Sensor

Dimming range

1…100 %


Dimmable

Yes

Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

End of lamp life safety shutdown

EOL T.2

Suitable for fixtures with prot. class

I

Intended for no-load operation

No

Max. cable length to lamp LED module

1.0 m 1.5 m

Certificates & standards

Approval marks – approval

VDE VDE-EMC EL EAC RCM CCC

Standards

Acc. to EN 55015; EN 55022 Acc. to EN 61547 Acc. to IEC 61000-3-2 EN 61000-3-2 Acc. to EN 61347-2-3 Acc. to EN 60929 Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547 Acc. to IEC 62386-101:Ed1 Acc. to IEC 62386-102:Ed1
