Product on sale

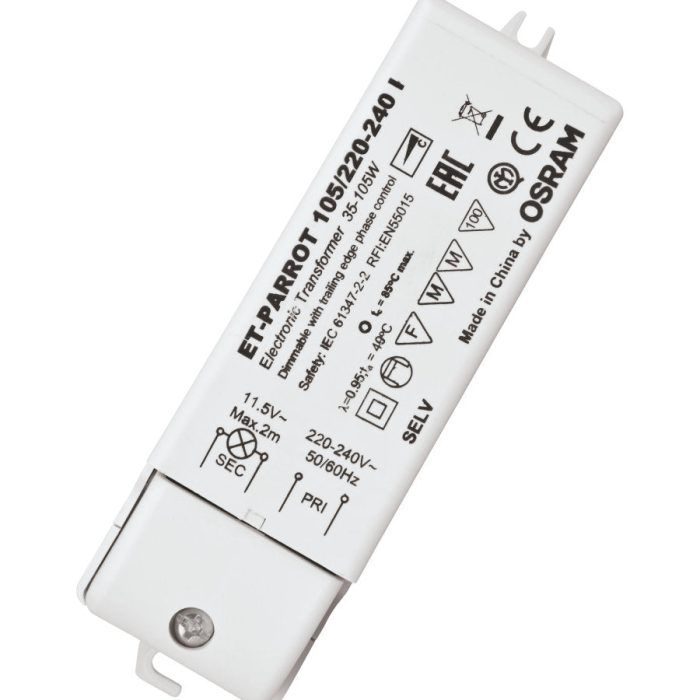

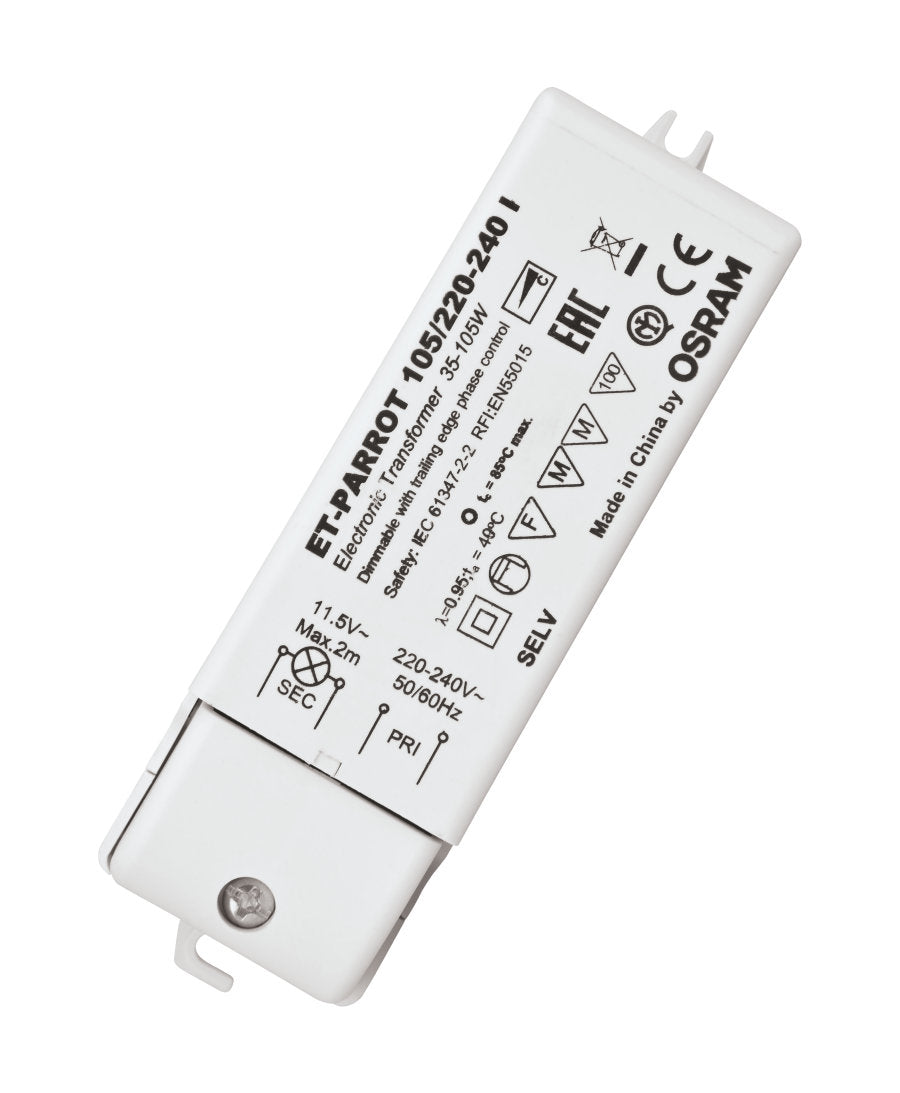

ET-PARROT 105 220…240 I For Sale

$7.47

21 people are viewing this right now
8 products sold in last 19 hours
Selling fast! Over 4 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
Product family benefits

  • Very low power loss thanks to high efficacy
  • Protective operation throughout the entire partial-load range for long lamp life
    • Areas of application

      • Effect and accent lighting
      • Living rooms
      • Object lighting
      • Conference rooms
      • Restaurants
      • Recessed and surface-mounted furniture luminaires
      • Shop lighting
      • Event rooms

      • Technical Data

        Electrical data

        Lamp wattage

        35…105 W

        Maximum output power

        105 W

        Line current

        0.45 A

        Nominal voltage

        220…240 V

        Power factor λ

        0.95

        Operating frequency

        40 kHz

        Nominal output voltage

        11.9 12.0 V

        Input voltage AC

        198…264 V

        Mains frequency

        50…60 Hz

        System wattage

        111.00 W

        Efficiency in full-load

        94 %

        Input voltage range

        220…240 V

        Max. ECG no. on circuit breaker 10 A (B)

        23

        Max. ECG no. on circuit breaker 16 A (B)

        38

        Galvanic isolation primary secondary

        4.00 kV

        Inrush current

        0.5 A

        Dimensions & weight

        Length

        128.0 mm

        Width

        38.0 mm

        Height

        31.0 mm

        Mounting hole spacing, length

        119.0 mm

        Cable cross-section, input side

        0.75 mm²

        Cable cross-section, output side

        0.75 mm²

        Wire preparation length, input side

        12 6.0 mm

        Wire preparation length, output side

        12 6.0 mm

        Product weight

        130.00 g

        Temperatures & operating conditions

        Ambient temperature range

        0…+40 °C

        Maximum temperature at tc test point

        85 °C

        Additional product data

        Design version

        Compact

        Capabilities

        Dimming method

        Trailing- or leading-edge phase control for inductive load dimmers

        Overload protection

        Automatic reversible

        Overheating protection

        Automatic reversible

        Short-circuit protection

        Automatic reversible

        Max. cable length to lamp LED module

        2.0 m

        Cable wire types, input side

        H03VV-F 2×0.75 mm²

        Cable wire types, output side

        H03VV-F 2×0.75 mm²

        Dimmable

        Yes

        Dimming range

        0…100 %

        No-load proof

        Yes

        Suitable for fixtures with prot. class

        II

        Intended for no-load operation

        No

        Certificates & standards

        Approval marks – approval

        VDE EAC

        Standards

        Acc. to EN 61347 Acc. to EN 55015 Acc. to EN 61000-3-2 Acc. to EN 61547

        Type of protection

        IP20

        Logistical data

        Commodity code

        850440909000

        Environmental information


        Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

        Date of Declaration

        14-04-2022

        Primary Article Identifier

        4008321111579

        Candidate List Substance 1

        Lead

        CAS No. of substance 1

        7439-92-1

        Safe Use Instruction

        The identification of the Candidate List substance is sufficient to allow safe use of the article.

        Declaration No. in SCIP database

        ad5fb676-828d-4743-bdca-2693e619714e

        Packaging information

        EAN

        Unit

        Piece

        Dimension l x w x h

        Weight

        Volume
        4008321111579

        		 UNV

        		 1

        		 128mm x 38mm x 31mm

        		 130.00g

        		 0.15dm³
        4008321111586

        		 VS

        		 50

        		 290mm x 206mm x 220mm

        		 697
