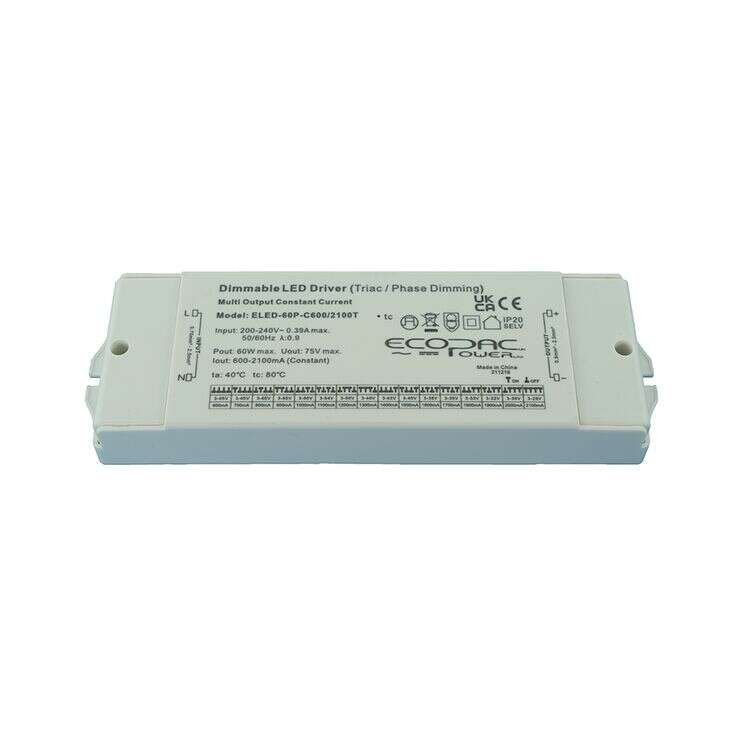

ELED-60P-C600 2100T 60W Triac (leading&Trailing) Dimming Dip-Switch Output Current LED Driver Online Hot Sale
26 people are viewing this right now
20 products sold in last 12 hours
Selling fast! Over 18 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
ELED-60P-C600-2100T Series Features:
Features:
• Constant Current mode output with multiple levels selectable by dip switch
• Dimming function: Triac phase cut dimming
• Work with leading or trailing edge Triac dimmer
• (ON key: leading edge; 1 key: trailing edge)
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 83%
• IP20 design for indoor installation
• Full protection plastic housing easy installation
• Protections: Short circuit Over load
• Cooling by free air convection
• Suitable for LED lighting and moving sign applications
• Strong compatibility, flicker-free dimming
| ELED-60P-C600-2100T(C600mA) | ELED-60P-C600-2100T(C700mA) | ELED-60P-C600-2100T(C800mA) | ELED-60P-C600-2100T(C900mA) | ELED-60P-C600-1200T(C1000mA) | ELED-60P-C600-2100T(C1100mA) | ELED-60P-C600-2100T(C1200mA) | ELED-60P-C600-1200T(C1300mA) | ELED-60P-C600-2100T(C1400mA) | ELED-60P-C600-2100T(C1500mA) | ELED-60P-C600-2100T(C1600mA) | ELED-60P-C600-2100T(C1700mA) | ELED-60P-C600-2100T(C1800mA) | ELED-60P-C600-2100T(C1900mA) | ELED-60P-C600-2100T(C2000mA) | ELED-60P-C600-2100T(C2100mA) | ||||||||||||||||||
| Wattage | 39 | 45.5 | 52 | 58.5 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |||||||||||||||||
| Input Voltage | 200~240 | 200~240VAC | 200~240VAC | 200~240VAC | 200~240 | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | 200~240VAC | |||||||||||||||||
| Output Current | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 | 2100 | |||||||||||||||||
| Output Voltage | 3~65 | 3~65 | 3~65 | 3~65 | 3~60 | 3~55 | 3~50 | 3~46 | 3~43 | 3~40 | 3~38 | 3~35 | 3~33 | 3~32 | 3~30 | 3~39 | |||||||||||||||||
| Dimensions | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | 192.5 x 62 x 24 mm | |||||||||||||||||
| Working Temperature | -40~60°C | ||||||||||||||||||||||||||||||||
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | ||||||||||||||||||||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B | ||||||||||||||||||||||||||||||||
| Title | Default Title |
|---|
